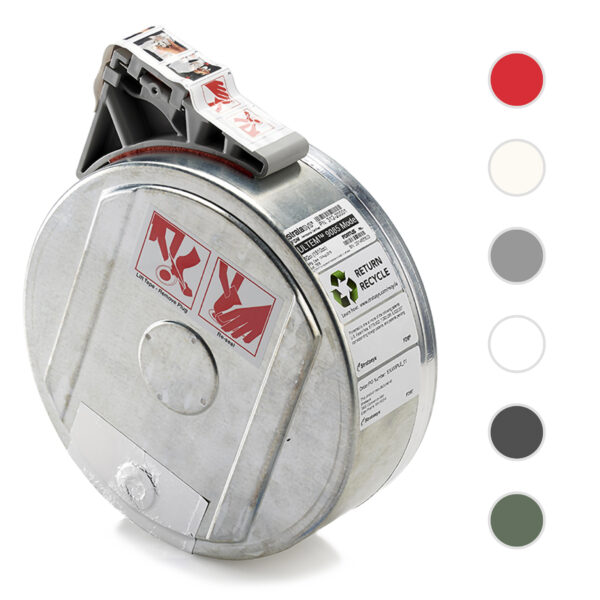

MTRL, FORTUS PLUS (M), ULTEM RESIN 9085, 92CI

ULTEM™ 9085 resin filament represents a thermoplastic FDM material based on PEI (polyetherimide). Notable for its remarkable strength-to-weight ratio, exceptional thermal and chemical resistance, it successfully aligns with numerous aerospace and railway industry standards, particularly in relation to flame, smoke, and toxicity (FST) attributes.

Furthermore, ULTEM™ 9085 resin CG (Certified Grade – exclusively available in Natural) exceeds more stringent testing criteria and offers a well-documented traceability system, connecting the filament back to the raw material’s lot number. This comprehensive documentation includes:

• Certificate of Analysis, encompassing both raw material and filament, presenting test results and ensuring a direct match between filament manufacturing lot number and raw material batch number.
• Certificate of Conformance, affirming the material’s adherence to approved Stratasys and industry specifications.

Typical applications for this exceptional material range from producing durable parts to crafting functional prototypes.

Compatible Machines:

• Fortus 450MC Gen I
• Fortus 450MC Gen II
• Fortus F900

Associated products to enable material use:

• 325-60300 – SUP8500B Break away support
• 511-10401 – TIP, FDM, T16 (Model)
• 511-10301-S – TIP, FDM, T12 (Support)
• 325-00275-S 900 & 450 high temperature build sheet, 0.02x16x18.5 in (0.51x406x470 mm)
• 310-00300-S High Temperature build sheet, 0.03x16x18.5 in. (0.76x406x470 mm)

View More [PDF]
