Professional FDM Additive Manufacturing Machines

The Fortus Series 3D printers are the top-of-the-line, industry-leading Fused Depositon Modeling additive manufacturing machines. Direct digital manufacturing is where the world is going and nothing will get you there faster than a Fortus 3D printing system.

Talk to a 3D printing expert

Fortus 900mc

Features

  • Available Material Options
    • Standard
      • ABS-M30 in six colors for great tensile, impact and flexural strength
      • ABSi for translucence
      • ABS-M30i for biocompatibility
      • ABS-ESD7 for static dissipation
      • ASA in 10 colors for great mechanical strength, UV stability and the best aesthetics
    •  Engineering
      • PC for superior mechanical properties and heat resistance
      • PC-ABS for the highest impact strength, plus the mechanical properties and heat resistance of PC and the surface appeal of ABS
      • PC-ISO for biocompatibility and superior strength (in White and Translucent)
      • Nylon 12 for maximum toughness
    • High Performance
      • Ultem 9085  for best mix of mechanical, chemical and thermal properties
      • Ultem 1010 for the highest heat resistance, chemical resistance and tensile strength of any FDM thermoplastic.
      • PPSF for highest heat and chemical resistance
  • Layer Thickness 0.013 in (0.33mm), 0.010 in (0.254mm), or 0.007 (0.178 mm)
  • Tray Size 36 x 24 x 36 in (914 x 610 x 914 mm)
  • Software Insight

PDF Specs:

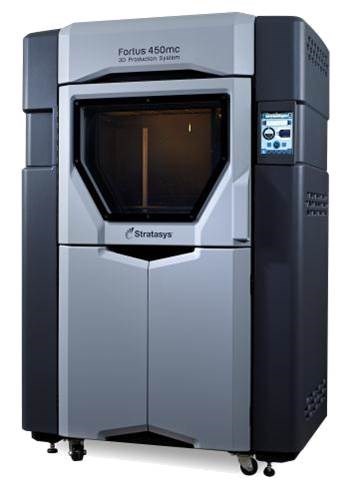

Fortus 450mc

Features

  • Available Materials Options
    • Standard
      • ABS-M30 in six colors for great tensile, impact and flexural strength
      • ABS-M30i for biocompatibility
      • ABS-ESD7 for static dissipation
      • ASA in 10 colors for great mechanical strength, UV stability and the best aesthetics
    •  Engineering
      • PC for superior mechanical properties and heat resistance
      • PC-ISO for biocompatibility and superior strength (in White and Translucent)
      • Nylon 12 for maximum toughness
    • High Performance
      • Ultem 9085  for best mix of mechanical, chemical and thermal properties
      • Ultem 1010 for the highest heat resistance, chemical resistance and tensile strength of any FDM thermoplastic.
      • Nylon 12 CF a lightweight, high strength, carbon-fiber reinforced thermoplastic.
  • Layer Thickness 0.005 in (0.127 mm), 0.007 (0.178 mm), 0.010 in (0.254mm), or 0.013 in (0.33mm)
  • Tray Size 16 x 14 x 16 in
  • Four Canister Bays Two Model and Two Support
  • Software Insight

PDF Specs:

Fortus 380mc

Features

  • Available Materials Options
    • Standard
      • ABS-M30 in six colors for great tensile, impact and flexural strength
      • ABS-M30i for biocompatibility
      • ABS-ESD7 for static dissipation
      • ASA in 10 colors for great mechanical strength, UV stability and the best aesthetics
    •  Engineering
      • PC for superior mechanical properties and heat resistance
      • PC-ISO for biocompatibility and superior strength (in White and Translucent)
      • Nylon 12 for maximum toughness
  • Layer Thickness 0.005 in (0.127 mm), 0.007 (0.178 mm), 0.010 in (0.254mm), or 0.013 in (0.33mm)
  • Tray Size 14 x 12 x 12 in (A 44% increase over previous generations)
  • Two Canister Bays One Model and One Support
  • Software Insight

PDF Specs:
