The first Stratasys 3D printer to offer soluble support material

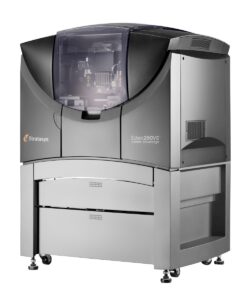

The Objet Eden260VS is equal to the Objet Eden260V but with the additional capability of running Stratasys’s first soluble support material. Using an automated support removal system reduces hands-on labor and cleans your part effortlessly without damaging delicate features. Additionally, the soluble support allows you to clean internal voids that the traditional water jet can miss.

Technical Specification

Building Materials

• Rigid Opaque: Vero family
• Rubber-like: Tango family
• Semi-Transparent: FullCure 720
• Polypropylene-like: DurusWhite
• High Temperature: RDG525

Material Cartridges

• Four 3.6kg cartridges
• Capable of loading two different model materials at once
• Swap-on-the-fly during build

Net Build Size

255 x 252 x 200 mm (10.0 x 9.9 x 7.9 in.)

Layer Resolution

Horizontal layer resolution as fine as 16 microns (0.0006 in)

Build Resolution

600 dpi, 600 dpi, 1600 dpi (X,Y,Z)

Accuracy

20-85 um for features smaller than 50mm; up to 200 um for full model size. This is dependent on material, geometry, build parameters and orientation of the part on the build tray.

File Input Format

STL, OBJDF, SLC File

Size and Weight

870 x 735 x 1200 (34.3 x 28.9 x 47.2 in); 264 kg (582 lbs)

Power Requirements

110-240 VAC 50/60hZ; 1.5 KW single phase
